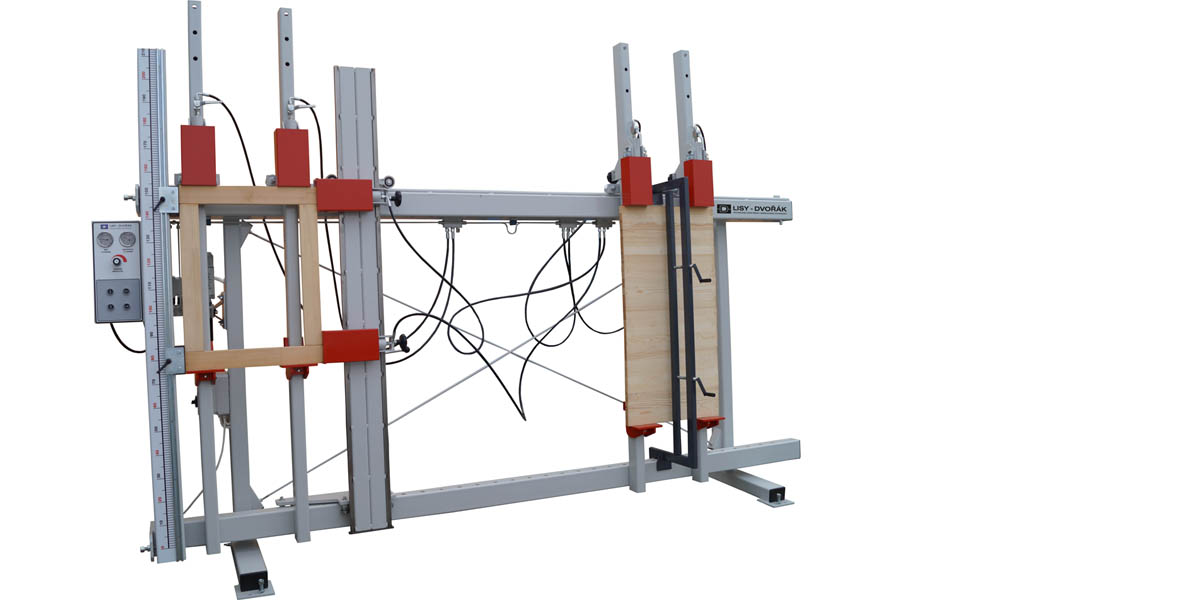

SLR model is determined for gluing frame constructions (windows, doors, etc.) and while using accessories also for desks, glulam beams and cabinets. In standard versions it is usually manufactured for gluing lengths 2 500 - 4 000 mm (possible max. 5 000 mm) and for gluing heights 1 800 - 2 500 mm (possible max. 3 000 mm). Machine consists of welded frame from thick profiles. On the top of the frame rail there are travelling pressing units itselves. Working height is adjustable in raster 100 mm by the bottom supporting feet and also by adjusting the top pressing unit, which is installed on counter-weights for comfortable unit using. Machine control is done from control panel where you can also set the working pressure.
Machine can be equipped by several pressing units and other accessories according the customer requirements.
| SLR product leaflet| parameter | value | unit |
|---|---|---|
| overall machine length | according the working length | mm |
| overall machine height | 2 580 / 2 880 / 3 280 | mm |
| overall machine depth (width) | 850 | mm |
| machine weight | according the model type | kg |
| max. frame gluing length (X axis) | 2 500 / 3 000 / 3 500 / 4 000 | mm |
| max. frame gluing height (Y axis) | 1 800 / 2 100 / 2 500 | mm |
| max. desk material gluing height (Y axis) | 1 450 | mm |
| max. material thickness/depth (Z axis) | 90 | mm |
| number of vertical pressing units (cylinders) | 3 - 10 | pcs |
| number of side pressing units (cylinders) | 2 - 3 | pcs |
| number of front aligning bars | 1 - 8 | pcs |
| max. pressing unit force (cylinder pressure) | 2 000 (20) | kg (kN) |
| max. front aligning bar force (manual - screw) | 300 (0,3) | kg (kN) |
| cylinder stroke | 120 | mm |
| electrohydraulic pump power | 0,8 - 2,2 | kW |
| pressure setting | YES, on control panel directly | |
| maximal pressure in hydraulic circuit | 200 | bar |
| hydraulic oil | HM 46 | 12 liters |
| voltage | 3x 400 V / 50 Hz |

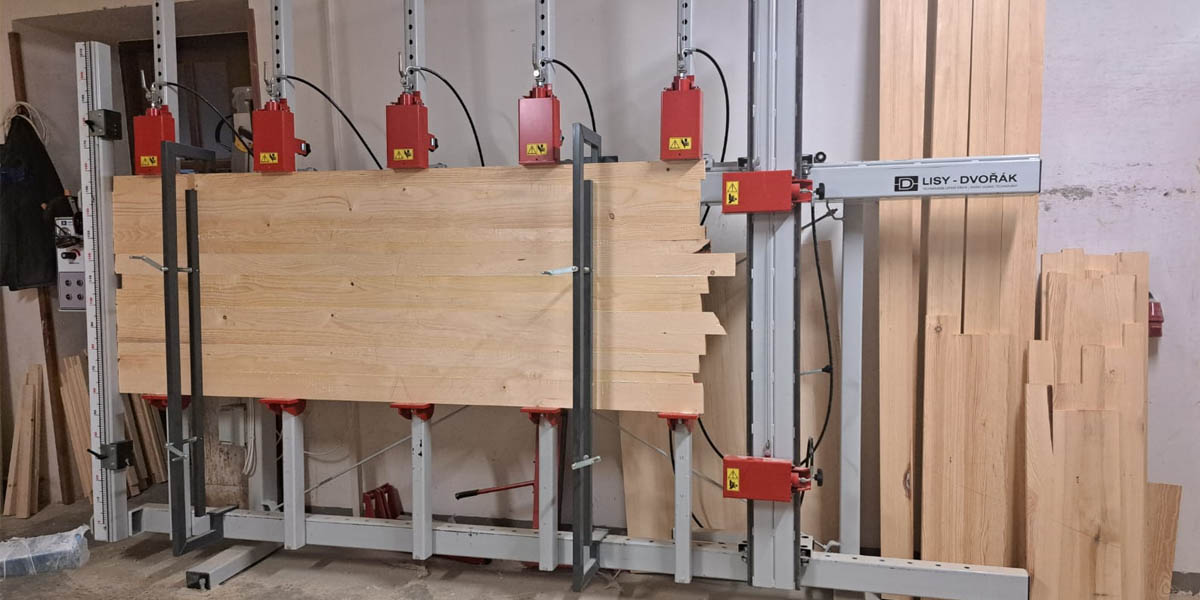

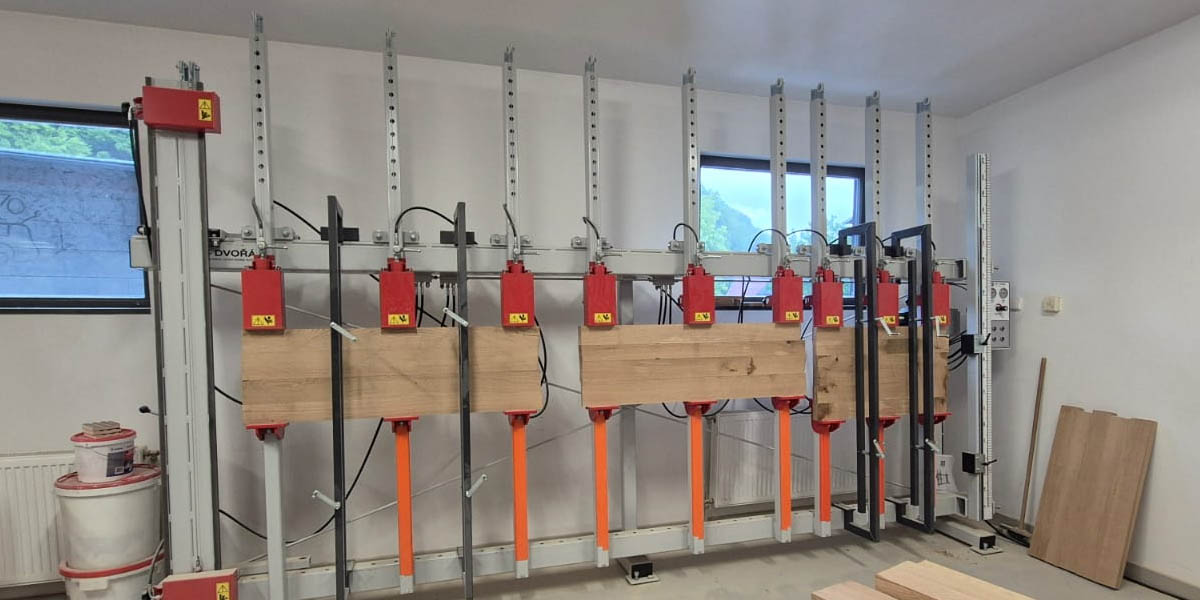

2.1 | FRONT ALIGNIN BEAMS FOR GLUING DESK MATERIAL | While gluing desk material it is recommended to use the front aligning bars which protects the material before "jump out off the press".

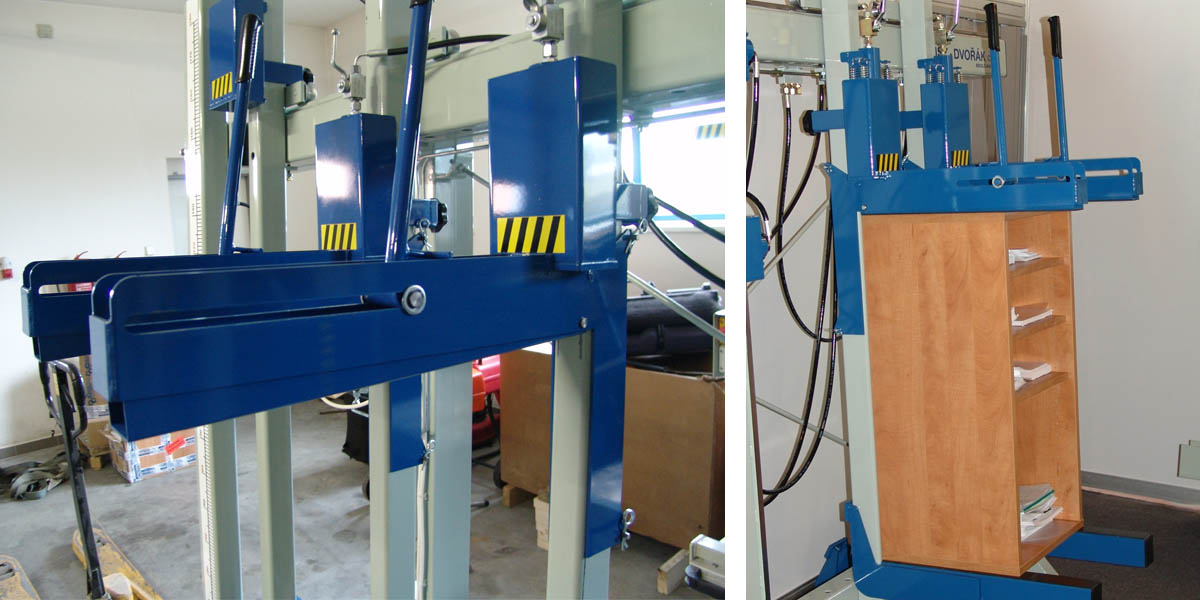

2.2 | CABINET UNITS | Also units for gluing cabinets are available like additional accessories.
2.3 | WHEELS | Machine can be installed on wheels. Usually all 4 pcs are with brake.

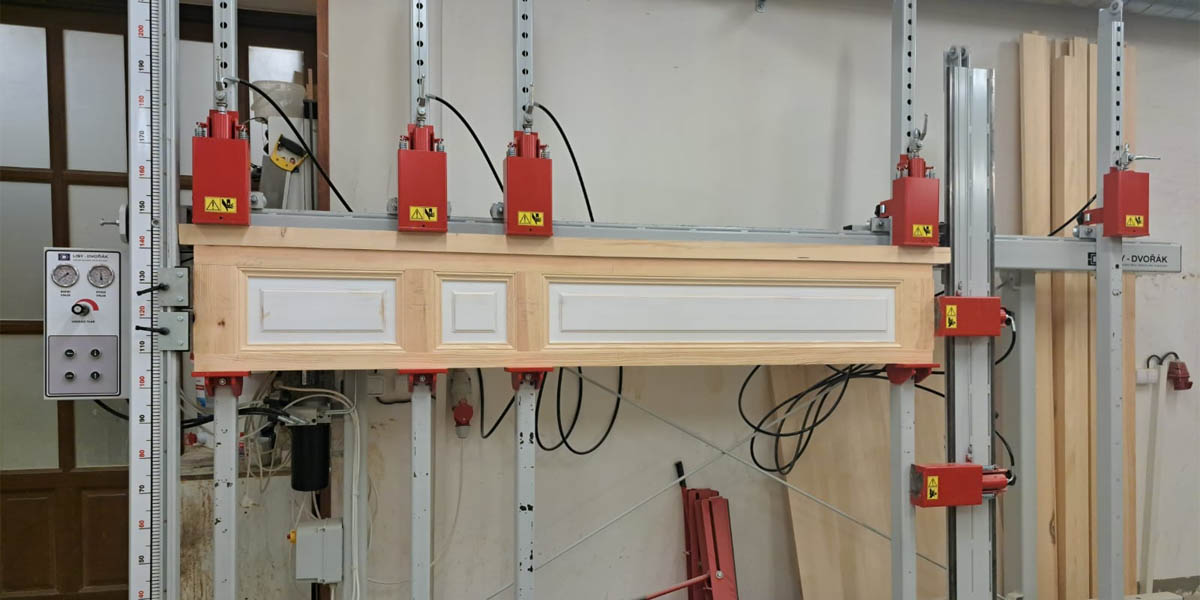

3.1 | GLUING FRAME CONSTRUCTION | Frame construction.

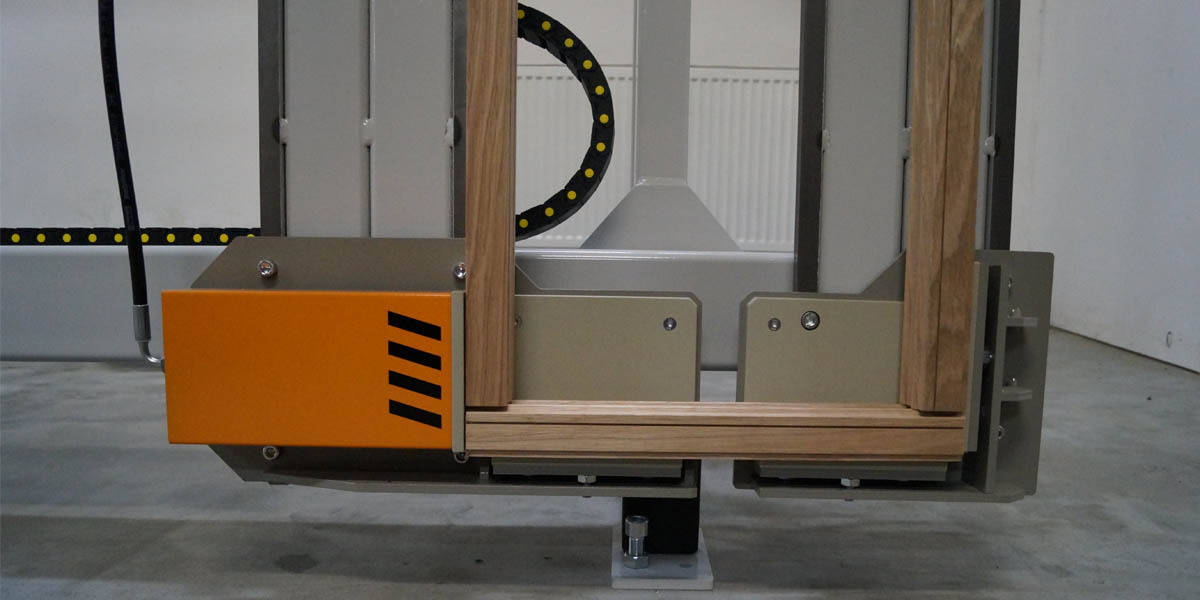

4.1 | GLUING ATYPICAL FRAME CONSTRUCTION | special frame construction
